Lesson 134: Refactoring the Winner Determination Workflow (Implementation)

Team Wpnzee on July 28, 2026

Introduction

In the previous lesson, we analyzed the complete winner determination workflow and discovered that several responsibilities had gradually accumulated inside the Bid Manager.

While debugging the missing transaction creation, it became clear that the underlying issue was not the Transaction Manager or the Escrow integration. Instead, the winner determination process itself had become increasingly difficult to follow due to duplicated logic and mixed responsibilities.

The objective of this lesson was therefore to refactor the workflow before introducing any new marketplace functionality.

Problems Identified

During the review we identified several issues.

  • Reserve price validation appeared in multiple places.
  • Winner determination and reserve checking were tightly coupled.
  • The workflow was difficult to trace from auction completion to transaction creation.
  • Debugging required following several nested function calls.
  • Future payment integrations would become increasingly difficult.

Rather than continuing to build on top of this complexity, the decision was made to simplify the workflow.

Refactoring Goals

The refactoring focused on three objectives.

Single Responsibility

Each function should perform one task.

For example:

  • Determine winner
  • Validate reserve price
  • Fire events
  • Create transaction

should all remain separate operations.

Clear Event Flow

The winner determination process now follows a predictable sequence.

Auction Ends
      │
      ▼
Determine Highest Bid
      │
      ▼
Validate Reserve Price
      │
      ▼
Declare Winner
      │
      ▼
Fire Winner Event
      │
      ▼
Transaction Manager
      │
      ▼
External Provider Manager
      │
      ▼
Escrow API Client

Easier Debugging

Instead of wondering whether the Transaction Manager was malfunctioning, it became possible to inspect the workflow step by step.

Each stage now represents a clear transition in the auction lifecycle.

Why This Matters

Although this refactoring produced very little visible change on the frontend, it significantly improved the internal architecture.

A well-defined event flow makes it easier to:

  • integrate new payment providers
  • add notifications
  • automate transactions
  • create audit logs
  • support additional marketplace features

without repeatedly modifying the Bid Manager.

Result

The Flipnzee Auctions plugin now has a cleaner winner determination workflow that separates auction logic from payment processing.

This architectural improvement provides a stable foundation for the next phase of development, where the marketplace begins evolving beyond simple bidding into a complete purchasing experience.

Next Lesson

In the next lesson we begin connecting auctions with secure payments by redesigning the Buy Now workflow around Escrow.com.

Rather than treating Buy Now as the end of the auction, it will become the beginning of a secure purchasing process.

Lesson 133: Refactoring the External Provider Manager

Team Wpnzee on July 27, 2026

As Flipnzee Auctions continued to evolve, it became clear that the External Provider Manager was beginning to take on too many responsibilities. Earlier implementations mixed database operations, provider selection, and external API communication inside a single class. While functional, this made the code difficult to extend and harder to maintain.

In this lesson, the architecture was refactored so that each component has a single, well-defined responsibility. Although no new user-facing functionality was added, this refactoring lays the foundation for future integrations with Escrow.com and other external transaction providers.

Why This Refactor Was Needed

The original implementation blurred several different responsibilities:

  • Creating local provider records.
  • Communicating with external APIs.
  • Updating provider metadata.
  • Managing provider lifecycle.

As the Escrow integration matured, it became apparent that separating these concerns would produce cleaner, more maintainable code.

The objective of this lesson was not to change functionality, but to improve the plugin architecture.

New Responsibilities

The transaction workflow is now organized into distinct layers.

Transaction Manager
        │
        ▼
External Provider Manager
        │
        ▼
Escrow API Client
        │
        ▼
Escrow.com

Each layer now performs only one job.

Transaction Manager

Responsible for:

  • Creating internal transactions.
  • Creating local provider records.
  • Building canonical transaction payloads.
  • Coordinating provider synchronization.

External Provider Manager

Responsible for:

  • Managing provider database records.
  • Delegating API requests to the appropriate provider client.
  • Synchronizing provider metadata.

It no longer performs HTTP requests directly.

Escrow API Client

Responsible for:

  • Payload validation.
  • API communication.
  • Response normalization.
  • Returning a standardized result to the application.

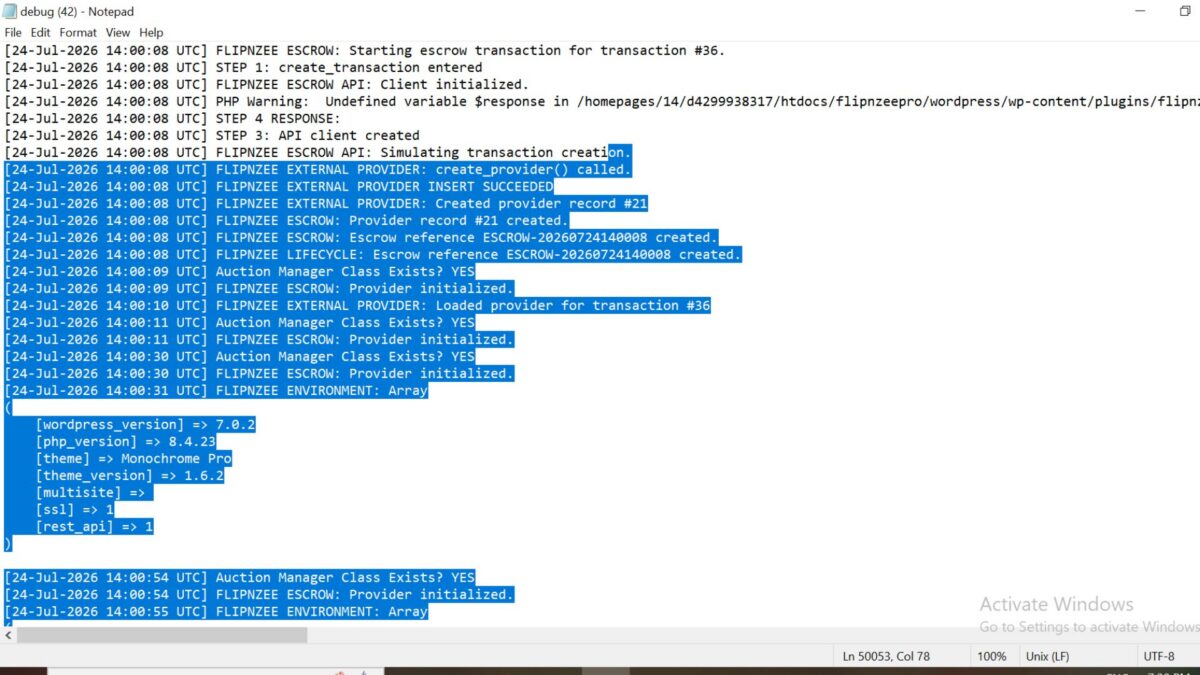

Provider Record Lifecycle

When a transaction is created, Flipnzee now creates an associated provider record before contacting the external provider.

The lifecycle is:

Create Transaction
        │
        ▼
Create Provider Record
        │
        ▼
Call Escrow API
        │
        ▼
Receive Response
        │
        ▼
Update Provider Record

This approach ensures every external transaction can be tracked independently from the auction transaction itself.

New Provider Synchronization

A new update_provider() method was introduced to synchronize provider information after receiving a successful response from the external provider.

Typical fields include:

  • Provider reference
  • Provider URL
  • Current provider status
  • Updated timestamp

This keeps the local database synchronized with the external provider without coupling database logic to the API client.

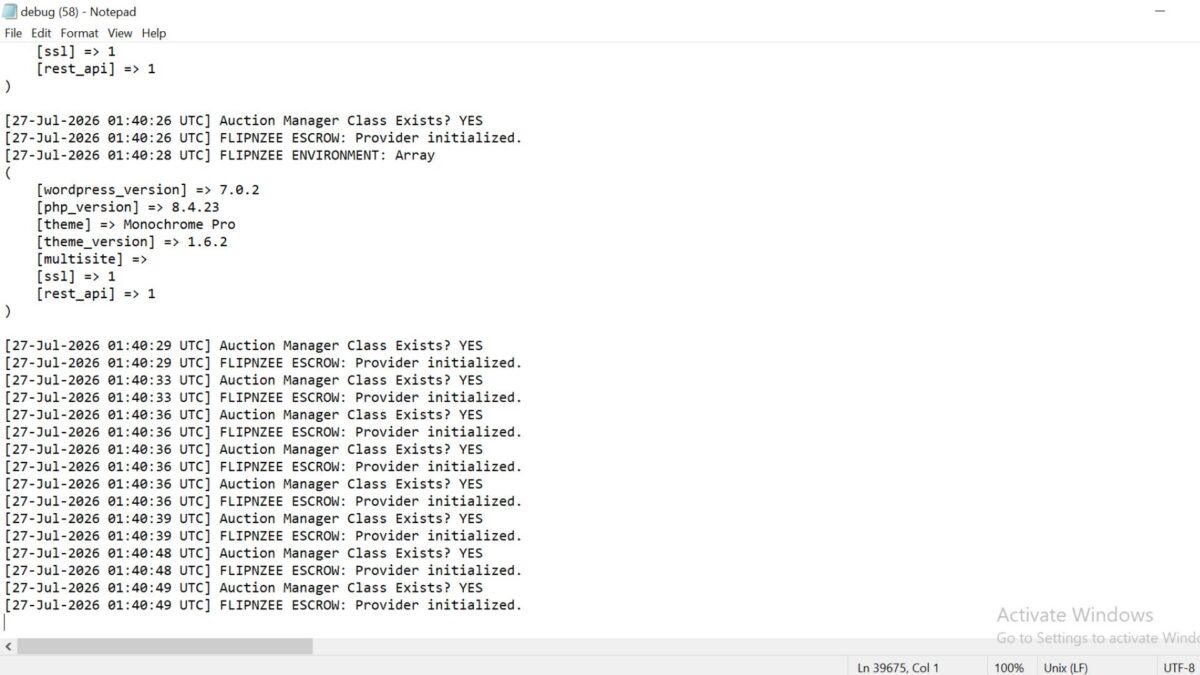

Improved Logging

Additional logging was added throughout the provider lifecycle.

Examples include:

  • Provider record creation
  • Provider synchronization
  • Failed provider updates
  • Database errors

These logs make debugging significantly easier during development and future integrations.

Cleaner Separation of Concerns

One of the biggest improvements introduced in this lesson is architectural rather than functional.

Instead of one large class handling everything, each class now has a clearly defined responsibility.

This makes it easier to:

  • Add new payment providers.
  • Replace existing providers.
  • Unit test components individually.
  • Extend the plugin without affecting unrelated functionality.

Current Status

While the External Provider Manager refactoring is now largely complete, testing also revealed that parts of the auction winner determination workflow require additional cleanup before the full transaction pipeline can be considered production-ready.

In particular, the reserve price validation logic inside the Bid Manager has accumulated duplicate and inconsistent code during previous iterations. Rather than layering additional features on top of unstable logic, the next lesson will focus on simplifying and stabilizing the winner determination process before continuing with further provider synchronization enhancements.

This is a good example of how software engineering often involves improving existing architecture before introducing new functionality. Careful refactoring at the right time helps keep a growing project maintainable and reduces the likelihood of subtle bugs appearing later as new features are added.

Lesson 133 demonstrates an important software engineering principle: clean architecture is an investment. By separating provider management, transaction orchestration, and external API communication into independent components, Flipnzee Auctions becomes easier to maintain today and significantly easier to extend in the future.

Lesson 132 Implementation: Standardizing the Transaction Payload

Team Wpnzee on July 26, 2026

As the Flipnzee Auctions plugin continued to evolve, one architectural issue became increasingly apparent. Although the Transaction Manager, External Provider Manager, and Escrow API Client all worked together, each component constructed or interpreted transaction data slightly differently.

This lesson introduces a significant refactoring by defining a canonical transaction payload that is shared across the entire Escrow integration workflow.

Rather than rebuilding transaction data at each layer, a single standardized payload is now created and passed unchanged throughout the transaction lifecycle.

Why this refactoring was necessary

Prior to Lesson 132, each component handled transaction information independently.

The Transaction Manager assembled transaction details before invoking the External Provider Manager. The Provider Manager then rebuilt another payload before sending it to the Escrow API Client. Finally, the API Client performed its own validation of required fields.

Although functional, this approach resulted in duplicated logic and increased the risk of inconsistencies whenever transaction fields changed.

The architecture previously resembled:

Transaction Manager
        │
        ▼
Creates Payload A
        │
        ▼
External Provider Manager
        │
        ▼
Creates Payload B
        │
        ▼
Escrow API Client

Every translation introduced another opportunity for errors.

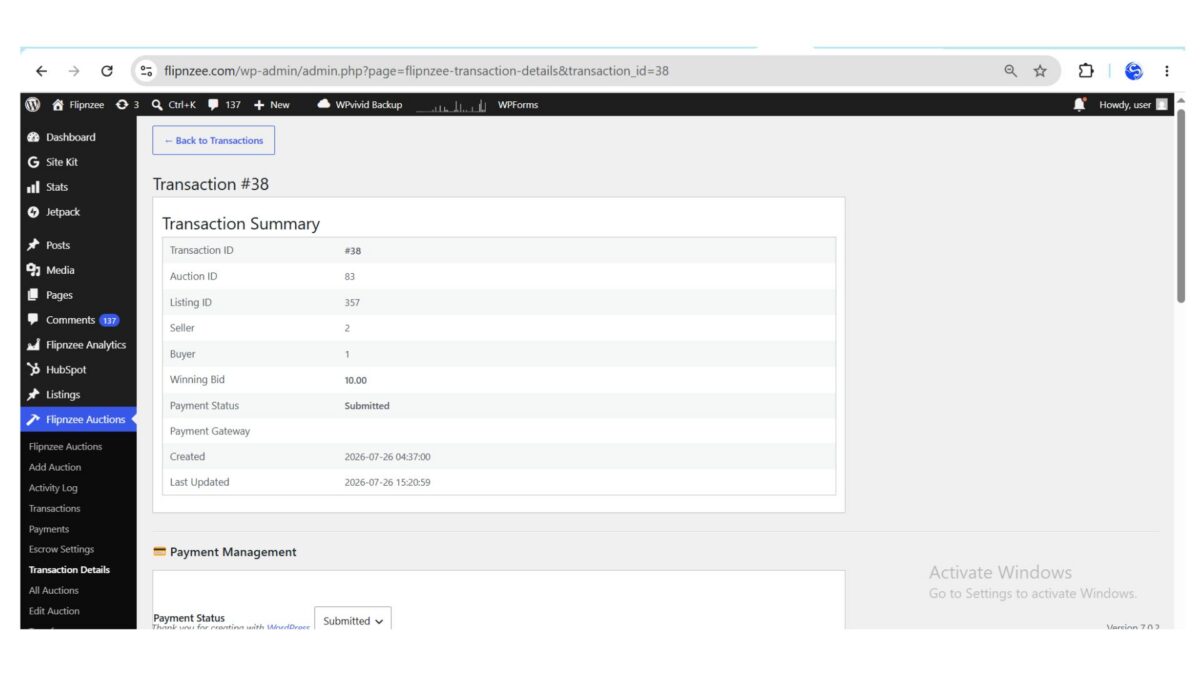

Building a Canonical Transaction Payload

Lesson 132 establishes the Transaction Manager as the single source of truth for transaction data.

A complete transaction payload is now created immediately after the local transaction record is generated.

The payload includes:

  • Transaction ID
  • Auction ID
  • Listing ID
  • Winning amount
  • Currency
  • Buyer ID
  • Seller ID
  • Buyer email
  • Seller email
  • Transaction title
  • Description

Instead of reconstructing missing values later, all required information now travels together through the integration.

Simplifying the External Provider Manager

The External Provider Manager has been refactored into a validation and routing layer.

Rather than generating missing transaction fields, it now performs two responsibilities:

  • Validate the incoming payload.
  • Pass the standardized payload directly to the Escrow API Client.

This significantly reduces duplicated business logic while making the provider layer much easier to maintain.

Improved API Validation

The Escrow API Client now validates the canonical payload before attempting any API communication.

Required fields are checked consistently, allowing missing or invalid data to be detected immediately before an HTTP request is made.

This results in clearer error reporting and a more predictable transaction workflow.

Architectural Improvements

The transaction flow is now much simpler.

Before

Auction Closed
      │
      ▼
Transaction Manager
      │
      ▼
Creates Custom Payload
      │
      ▼
External Provider Manager
      │
      ▼
Creates Another Payload
      │
      ▼
Escrow API Client

After

Auction Closed
      │
      ▼
Transaction Manager
      │
      ▼
Canonical Transaction Payload
      │
      ▼
External Provider Manager
      │
      ▼
Escrow API Client
      │
      ▼
Simulation / Sandbox / Production

Every component now communicates using the same data contract.

Benefits

This refactoring provides several long-term advantages.

Single Source of Truth

Transaction information is created once and reused throughout the integration.

Reduced Code Duplication

Provider-specific classes no longer recreate values that already exist.

Easier Debugging

Developers can inspect a single payload throughout the transaction lifecycle instead of tracing multiple array transformations.

Better Maintainability

Adding or modifying transaction fields now requires changes in only one location.

Future Provider Support

Additional payment providers can consume the same standardized payload without requiring custom payload builders.

Current Status

With Lesson 132 complete, the Escrow integration architecture has become considerably cleaner.

The plugin now consists of clearly separated responsibilities:

  • Transaction Manager
  • External Provider Manager
  • Escrow API Client
  • Canonical Transaction Payload
  • Simulation, Sandbox, and Production environments

This standardized data contract lays a solid foundation for future provider integrations while reducing complexity across the transaction workflow.

https://github.com/SplendidDigital/flipnzee-auctions/releases/tag/lesson-132-stable

Next Lesson

Lesson 133 will focus on persisting provider references and synchronizing provider status. The plugin will begin storing external transaction identifiers returned by Escrow.com and updating local provider records with the latest status, preparing the system for ongoing synchronization and future webhook support.

Lesson 131 Implementation: Introducing the External Provider Manager

Team Wpnzee on July 26, 2026

In the previous lessons, the Escrow API client was refactored into a reusable HTTP client capable of communicating with Escrow.com in Simulation, Sandbox, and Production environments. While this significantly improved the networking layer, the rest of the plugin still interacted directly with the Escrow client.

This lesson introduces an important architectural improvement: the External Provider Manager.

Rather than allowing business logic to communicate directly with a specific payment provider, all external transaction providers are now accessed through a common manager. Although Escrow.com is currently the only supported provider, this abstraction makes the plugin easier to maintain and allows additional providers to be introduced in the future without affecting the transaction workflow.

Why this refactoring was needed

Prior to this lesson, various parts of the plugin were aware of the Escrow API client itself. That meant changing providers or supporting multiple providers would require modifications throughout the codebase.

The new architecture centralizes that responsibility.

Instead of:

Transaction Manager
        │
        ▼
Escrow API Client

the flow now becomes:

Transaction Manager
        │
        ▼
External Provider Manager
        │
        ▼
Escrow API Client

The Transaction Manager no longer needs to know how Escrow transactions are created. It simply requests that an external transaction be created using the configured provider.

What was implemented

Lesson 131 introduces the Flipnzee_External_Provider_Manager class as the single entry point for external transaction providers.

The manager now:

  • Accepts a provider identifier.
  • Validates the requested provider.
  • Creates an Escrow API client when required.
  • Converts internal transaction data into an Escrow-compatible payload.
  • Returns a standardized response to the calling code.

This keeps provider-specific logic isolated from the rest of the plugin.

Escrow payload builder

A dedicated payload builder was added to translate Flipnzee transaction data into the format expected by the Escrow API client.

Typical information included in the payload includes:

  • Transaction title
  • Description
  • Amount
  • Currency
  • Buyer email
  • Seller email

Keeping this translation in one place makes future API changes much easier to accommodate.

Standardized provider responses

The Provider Manager also ensures callers always receive a consistent response structure.

Whether the request succeeds or fails, the calling code receives a predictable array describing:

  • Success or failure
  • Message
  • Provider response

This avoids provider-specific handling throughout the plugin.

Benefits

This refactoring provides several long-term advantages.

Separation of responsibilities

The Transaction Manager no longer performs provider-specific work.

Improved maintainability

Changes to Escrow integration are now isolated within the provider layer.

Easier testing

Simulation Mode, Sandbox, and Production all continue to function without requiring changes elsewhere in the plugin.

Future extensibility

Supporting additional transaction providers becomes significantly easier because the Transaction Manager communicates only with the Provider Manager rather than individual provider implementations.

Potential future providers could include:

  • Escrow.com
  • Trustap
  • Stripe Connect
  • Manual escrow workflows
  • Additional marketplace services

Current status

At the end of Lesson 131, the overall architecture has matured considerably.

The plugin now consists of:

  • Transaction Manager
  • External Provider Manager
  • Escrow Provider
  • Refactored Escrow API Client
  • Simulation, Sandbox, and Production environments

While additional work remains before production-ready Escrow integration is complete, the major architectural foundation is now in place.

Next lesson

Lesson 132 will focus on standardizing the transaction payload shared between the Transaction Manager, External Provider Manager, and Escrow API Client. Establishing a single canonical payload will simplify debugging, eliminate duplicated mapping logic, and prepare the integration for reliable end-to-end transaction processing.

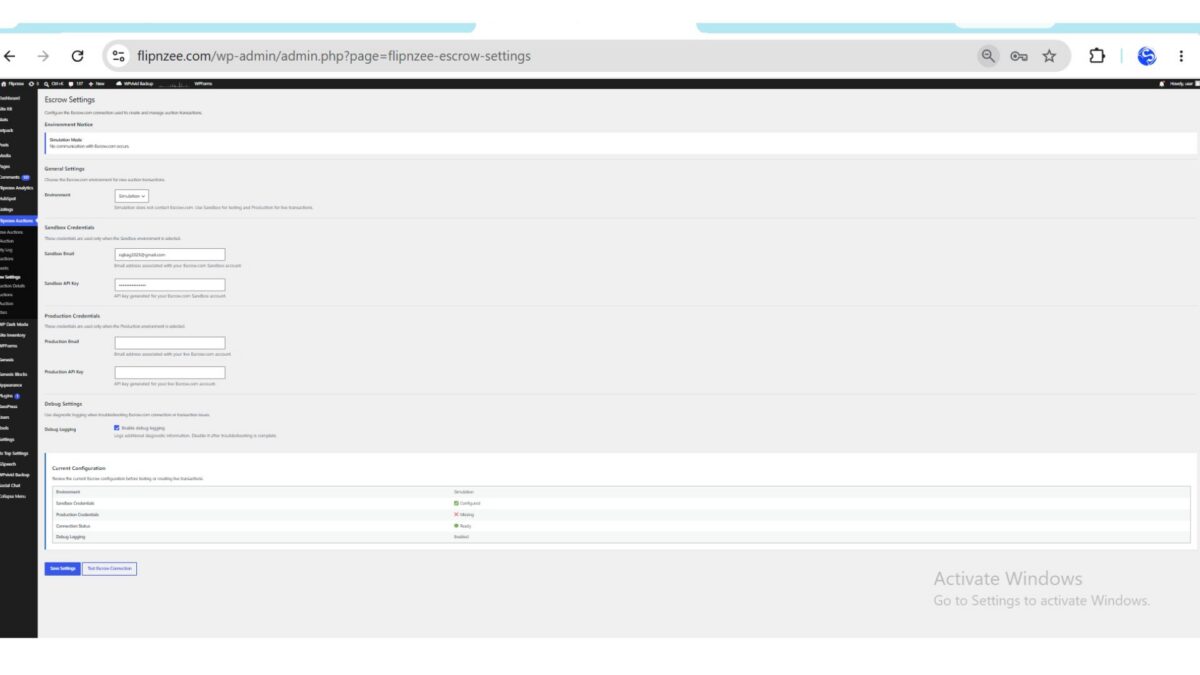

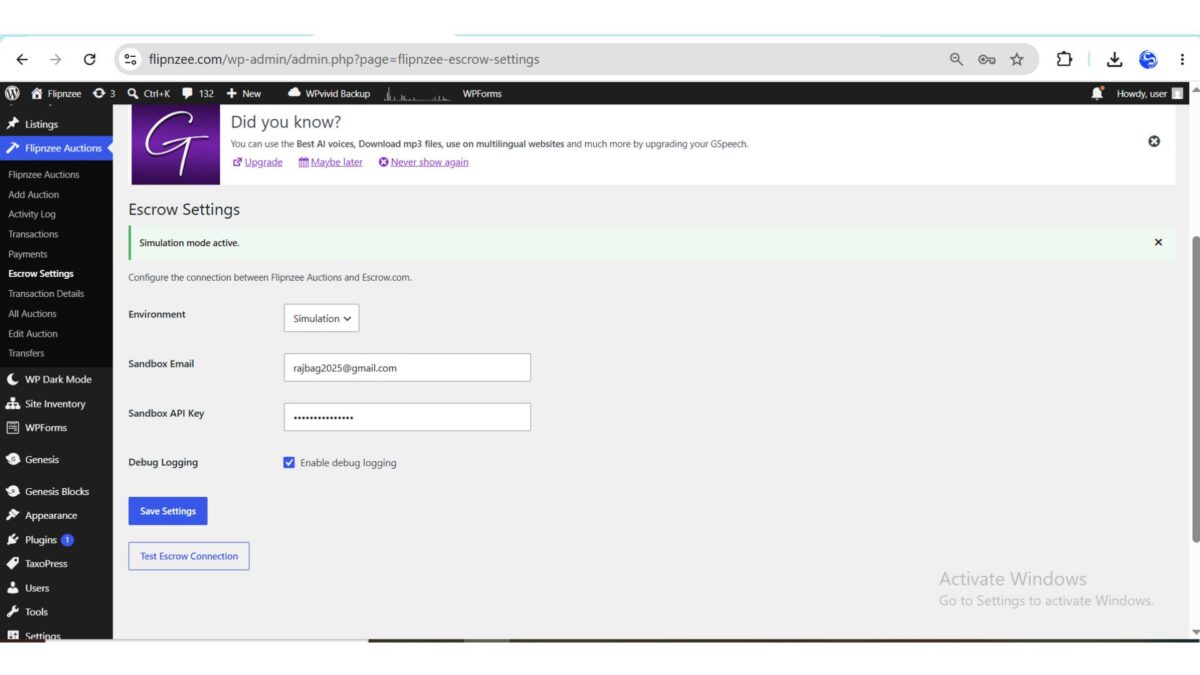

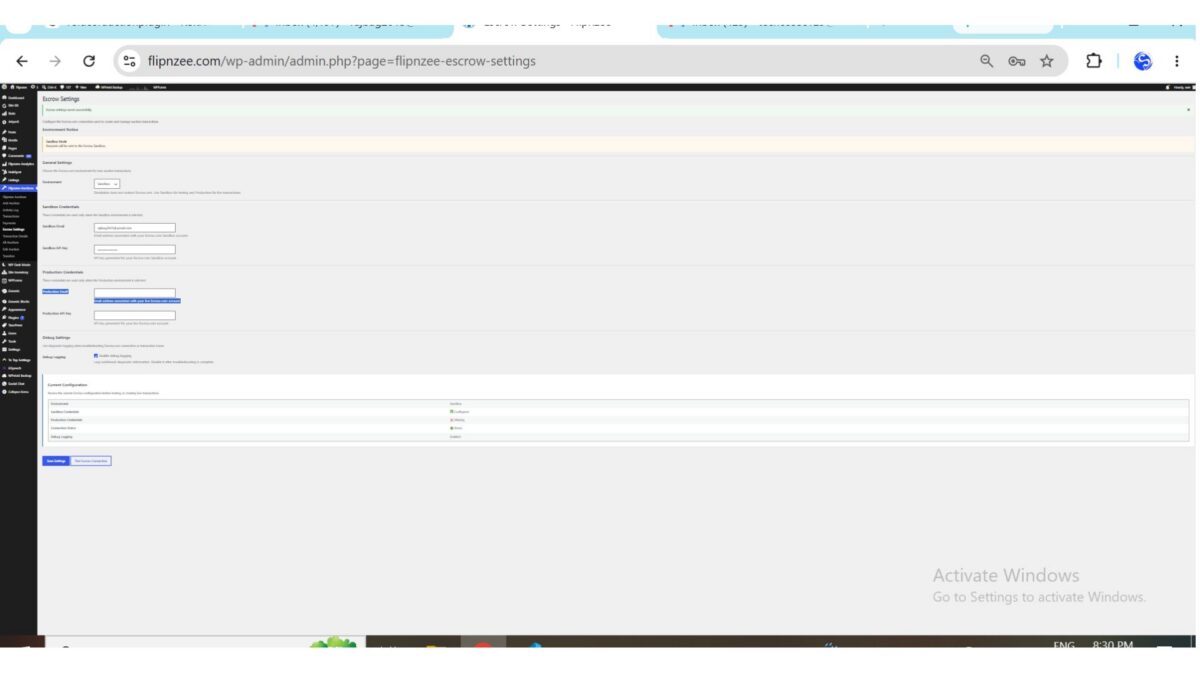

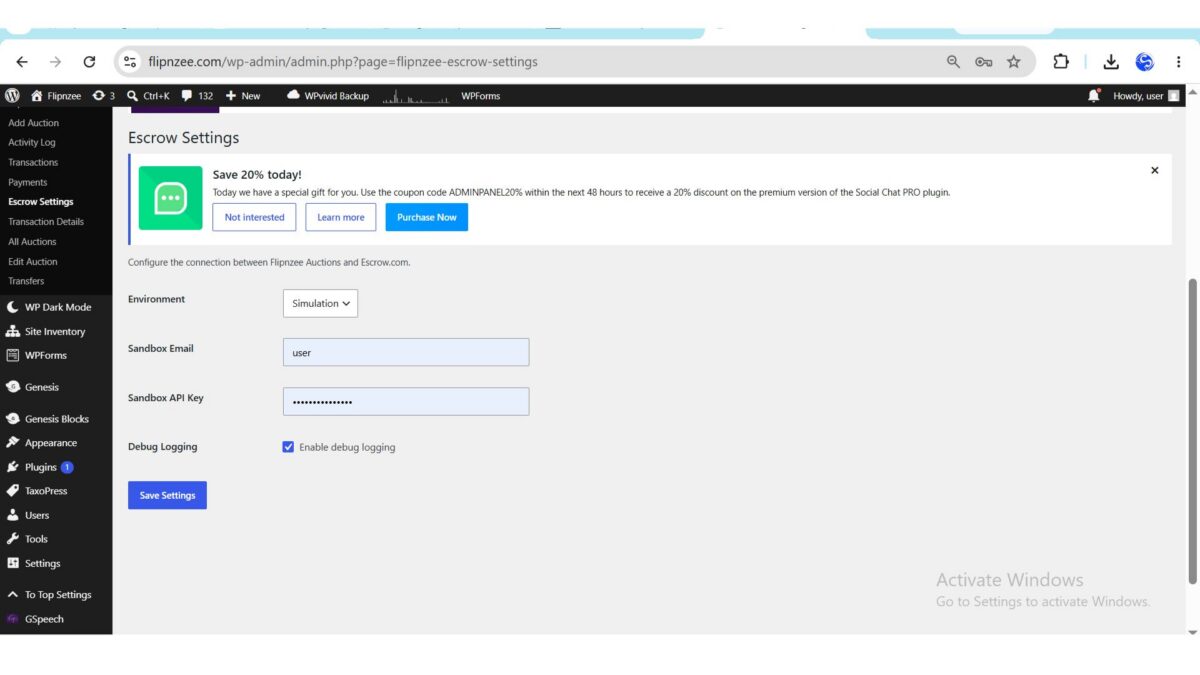

Lesson 130 – Building a Production-Ready Escrow Settings Interface

Team Wpnzee on July 26, 2026

In the previous lessons, we focused on strengthening the internal architecture of the Escrow integration. The API client was refactored to use the WordPress HTTP API, response handling became standardized, and the plugin gained support for Simulation, Sandbox, and Production environments.

While these backend improvements significantly improved maintainability, the administrator experience still had room for improvement.

In this lesson, we’ll redesign the Escrow Settings page to provide a cleaner interface, better validation, and a clearer overview of the plugin’s configuration.

Where We Left Off

At the end of Lesson 129, administrators could configure the Escrow integration, but the page was fairly minimal.

It provided:

  • Environment selection
  • Sandbox credentials
  • Debug logging
  • Connection testing

Although functional, it didn’t fully expose the capabilities already built into the Escrow API client.

Objectives

The goal of this lesson is to transform the Escrow Settings page into a more polished administration interface while keeping the existing backend architecture intact.

The improvements focus on usability rather than introducing new API functionality.

Introducing Multiple Configuration Sections

Instead of presenting every option inside a single table, the settings page is now divided into logical sections.

The new layout includes:

  • Environment Notice
  • General Settings
  • Sandbox Credentials
  • Production Credentials
  • Debug Settings
  • Current Configuration

Breaking the page into smaller sections makes navigation easier and improves readability as the plugin continues to grow.

Environment Awareness

One of the most noticeable improvements is the addition of an environment notice.

Whenever an administrator selects an environment, the page immediately explains what that environment represents.

For example:

  • Simulation performs no external requests.
  • Sandbox communicates with the Escrow testing environment.
  • Production is intended for real Escrow transactions.

Providing this information directly within the interface reduces configuration mistakes and makes the plugin easier to understand.

Production Credentials

Previous versions of the settings page focused primarily on Sandbox credentials.

Lesson 130 introduces dedicated fields for live Escrow.com credentials.

Administrators can now configure:

  • Production Email
  • Production API Key

This completes the configuration interface and aligns it with the capabilities already implemented within the Escrow API client.

Better Input Validation

The plugin now validates configuration before saving.

Depending on the selected environment, administrators must provide the required credentials.

For example:

Sandbox mode requires:

  • Sandbox Email
  • Sandbox API Key

Production mode requires:

  • Production Email
  • Production API Key

Instead of saving incomplete settings, the plugin now displays clear validation messages, helping administrators resolve configuration problems before attempting to connect to Escrow.com.

Credential Verification

A small helper method now determines whether the required credentials exist for the active environment.

Rather than repeating this logic throughout the codebase, it has been centralized into a reusable method.

This helper is now used to determine whether the current configuration is ready for testing.

Smarter Connection Testing

One subtle but useful improvement is the Test Escrow Connection button.

Rather than allowing administrators to submit a request that is guaranteed to fail, the button now becomes unavailable whenever the required credentials are missing.

This defensive approach improves the overall user experience while reducing unnecessary API requests.

Configuration Dashboard

The settings page now concludes with a configuration summary.

Rather than forcing administrators to review multiple input fields, the dashboard provides a quick overview of the current Escrow configuration.

Information displayed includes:

  • Current Environment
  • Sandbox Credential Status
  • Production Credential Status
  • Connection Readiness
  • Debug Logging Status

This makes it much easier to verify the plugin’s configuration at a glance.

Cleaner Code Structure

Although the visual changes are significant, the internal architecture has also improved.

Several responsibilities have been moved into dedicated helper methods, including:

  • Environment labeling
  • Credential validation
  • Credential availability checks
  • Environment notices

This keeps the render_page() method focused on presentation while allowing reusable logic to remain centralized elsewhere in the class.

User Experience Improvements

Several smaller refinements were also introduced:

  • Better section headings
  • Improved field descriptions
  • More consistent spacing
  • Clearer labels
  • Improved accessibility through proper form labels
  • Better alignment with the native WordPress administration interface

While individually small, these improvements combine to create a much more polished configuration experience.

Preparing for Live Escrow Transactions

Although this lesson doesn’t yet create real Escrow transactions, it lays an important foundation for the lessons that follow.

Before a plugin can communicate reliably with an external payment provider, administrators must have confidence that their configuration is correct.

Lesson 130 ensures that the plugin can now validate and present that configuration much more effectively.

Expected Outcome

After completing this lesson, Flipnzee Auctions provides a significantly improved Escrow administration experience.

Administrators can:

  • Configure Sandbox and Production credentials separately.
  • Clearly identify the active environment.
  • Validate settings before saving.
  • Test only valid configurations.
  • Review their current configuration from a dedicated status dashboard.

These improvements make the plugin easier to configure, easier to troubleshoot, and better prepared for future production features.

Conclusion

As software matures, development gradually shifts from building core functionality to refining the overall user experience.

Lesson 130 demonstrates that production-ready software isn’t defined solely by powerful backend code. A well-designed administration interface is equally important, helping users configure the system correctly while reducing errors and simplifying maintenance.

With the configuration interface now significantly improved, the groundwork is complete for the next major milestone: creating and managing real Escrow.com transactions directly from Flipnzee Auctions.

In the next lesson, we’ll begin implementing the transaction lifecycle by initiating real Escrow transactions through the refactored API client, bringing the plugin one step closer to a fully production-ready Escrow integration.

https://github.com/SplendidDigital/flipnzee-auctions/releases/tag/lesson-130-stable

Lesson 128: Refactoring the Escrow API Client with the WordPress HTTP API

Team Wpnzee on July 25, 2026

In the previous lessons, the Escrow provider relied on a simulated API client. Although this allowed us to build and test the payment workflow without contacting external services, the implementation was tightly coupled to simulation logic and wasn’t ready for real API communication.

In this lesson, we’ll redesign the Escrow API client into a reusable networking component built on top of the WordPress HTTP API. Rather than focusing on Escrow.com specifically, the goal is to establish a clean architecture that can communicate with any REST API while keeping the rest of the plugin independent of transport details.

Why Refactor?

As the plugin grows, responsibilities should become more clearly separated.

Previously, the API client:

  • Simulated responses directly inside public methods.
  • Mixed environment detection with business logic.
  • Had no reusable HTTP layer.
  • Was difficult to extend for production integration.

Instead, we want a client that:

  • Supports multiple environments.
  • Centralizes HTTP communication.
  • Produces consistent response structures.
  • Is easy to test and maintain.

Design Goals

By the end of this lesson, the client should:

  • Support Simulation, Sandbox, and Production modes.
  • Use the WordPress HTTP API (wp_remote_request()).
  • Centralize networking in a reusable request method.
  • Generate HTTP Basic Authentication headers.
  • Return standardized responses.
  • Preserve backwards compatibility with existing provider classes.

Environment-Based Configuration

Instead of relying on a simple boolean flag, the client now loads its configuration directly from the plugin settings.

This allows the same class to operate in different environments without requiring code changes.

Supported environments include:

  • Simulation
  • Sandbox
  • Production

Simulation mode continues to return fake responses so development can proceed safely without contacting Escrow.com.

Centralizing HTTP Requests

One of the biggest improvements is introducing a dedicated request handler.

Rather than each public method performing its own networking, all requests now flow through a single internal method responsible for:

  • Building request URLs
  • Creating headers
  • Encoding JSON payloads
  • Calling the WordPress HTTP API
  • Handling transport errors
  • Decoding JSON responses
  • Returning normalized data

This dramatically reduces duplicated code throughout the client.

Authentication

Authentication is now generated automatically from the saved Escrow settings.

Depending on the selected environment, the client retrieves the appropriate credentials and builds a standard HTTP Basic Authentication header before every request.

This keeps authentication logic in one place while allowing the rest of the plugin to remain unaware of implementation details.

Consistent Responses

Another important improvement is response normalization.

Regardless of whether the client is operating in Simulation, Sandbox, or Production, every public method returns a consistent structure containing information such as:

  • Success status
  • Message
  • Provider reference
  • Transaction status
  • Response data
  • Endpoint information
  • HTTP response code

Having a predictable response format greatly simplifies error handling elsewhere in the plugin.

Simulation Mode

Simulation mode remains an important part of the architecture.

Instead of bypassing the client entirely, simulation requests travel through the same workflow before returning realistic mock responses.

This allows the rest of the plugin to be developed and tested without requiring valid Escrow credentials or network connectivity.

WordPress HTTP API

The client now communicates through the WordPress HTTP API instead of custom networking code.

Using the WordPress HTTP API provides several benefits:

  • WordPress-managed SSL verification
  • Proxy support
  • Better compatibility across hosting environments
  • Consistent error handling
  • Easier future maintenance

It also aligns the plugin with WordPress development best practices.

Logging

Debug logging has been improved to assist development.

When enabled, the client records useful information during requests without exposing sensitive authentication details.

This makes troubleshooting significantly easier while keeping production environments clean when debugging is disabled.

Benefits of the Refactoring

Although the plugin’s visible behavior changes very little, the internal architecture improves substantially.

The Escrow client is now:

  • More modular
  • Easier to understand
  • Easier to extend
  • More reusable
  • Better aligned with WordPress Coding Standards

Most importantly, future lessons can focus entirely on Escrow transaction payloads and provider synchronization without needing to revisit the networking layer.

What We Learned

In this lesson we learned how to:

  • Refactor an API client without changing its public interface.
  • Separate networking concerns from business logic.
  • Use the WordPress HTTP API for REST communication.
  • Support multiple runtime environments.
  • Normalize API responses.
  • Build a maintainable foundation for future payment provider integrations.

Conclusion

Lesson 128 marks an important architectural milestone for Flipnzee Auctions. The Escrow API client has evolved from a simple simulation helper into a reusable networking component capable of supporting real-world API integrations.

While transaction creation and synchronization will continue to evolve in upcoming lessons, the underlying transport layer is now in place. This separation of concerns makes the plugin easier to maintain, easier to test, and better prepared for production use.

In the next lesson, we’ll build on this foundation by improving how Escrow responses are processed and preparing the plugin for real transaction lifecycle management.

https://github.com/SplendidDigital/flipnzee-auctions/releases/tag/lesson-128-stable

Lesson 127: Implementing Escrow Connection Testing & API Client Integration

Team Wpnzee on July 25, 2026

As the Flipnzee Auctions plugin evolves, the Escrow integration is beginning to take shape beyond simple configuration screens. In the previous lesson, an Escrow Settings page was introduced to allow administrators to configure the environment and credentials. While those settings could be saved successfully, there was still no practical way to verify that the configuration was actually usable.

In this lesson, the plugin gains its first end-to-end Escrow connection testing workflow. Although the implementation still operates in simulation mode, the architecture now closely resembles what will eventually be used for communicating with the live Escrow.com API.

Lesson Objectives

By the end of this lesson, the plugin can:

  • Save Escrow configuration securely.
  • Load Escrow settings from WordPress options.
  • Initialize the Escrow API Client using saved configuration.
  • Test the configured connection directly from the admin interface.
  • Display administrator-friendly success messages.
  • Prepare the plugin architecture for future live API requests.

Reviewing the Existing Architecture

Before adding new functionality, the existing components were reviewed.

The project already contained:

  • Escrow Settings administration page
  • Escrow API Client
  • External Provider Manager
  • Escrow Provider abstraction

Rather than creating another isolated implementation, the new functionality was integrated into these existing components.

This keeps responsibilities well separated.

Admin Page
        │
        ▼
Escrow API Client
        │
        ▼
Simulation / Sandbox / Production

Extending the Escrow API Client

The Escrow API Client was refactored to load configuration directly from the plugin settings.

During construction it now retrieves:

$this->settings = get_option(
    'flipnzee_escrow_settings',
    array()
);

Instead of relying on hardcoded values, the client now determines its behaviour from administrator-configured settings.

Environment Detection

A dedicated helper method was introduced:

public function get_environment()

This method returns one of:

simulation
sandbox
production

Centralising this logic makes the remainder of the API client significantly cleaner.

Instead of repeatedly checking options throughout the codebase, every component can simply ask:

$environment = $this->get_environment();

Refactoring Connection Testing

The previous implementation contained duplicate connection testing methods.

These were consolidated into a single implementation capable of handling every supported environment.

The method now returns responses similar to:

return array(
    'success' => true,
    'message' => 'Simulation mode active.',
);

Future lessons will replace these simulated responses with real HTTP requests while preserving the same interface.

Connecting the Admin Page

The Escrow Settings page was updated with a dedicated button:

Test Escrow Connection

Instead of simply saving settings, administrators can now immediately verify the configured environment.

Internally the workflow is:

Administrator

↓

Escrow Settings Page

↓

test_connection()

↓

Flipnzee_Escrow_API_Client

↓

Connection Result

↓

WordPress Admin Notice

This provides immediate feedback without requiring administrators to inspect debug logs.

WordPress Admin Notices

Rather than printing raw output, the implementation uses the native WordPress Settings API.

Successful tests generate notices using:

add_settings_error()

which are displayed through:

settings_errors()

This approach provides a familiar user experience consistent with WordPress core.

Security Improvements

The lesson also improves request handling.

Both actions now verify WordPress nonces before processing:

  • Save Settings
  • Test Connection

This prevents unauthorised requests while maintaining a clean administration workflow.

Eliminating Duplicate Logic

During development several issues surfaced, including:

  • duplicate connection testing methods
  • misplaced class methods
  • syntax errors
  • missing settings
  • undefined array warnings

Rather than working around these problems, the implementation was simplified by removing duplicate logic and ensuring every responsibility existed in only one location.

This makes the code easier to understand and maintain.

Testing the Workflow

After implementation, the complete workflow was verified.

Saving configuration now stores:

  • Environment
  • Sandbox Email
  • Sandbox API Key
  • Debug Logging preference

Selecting Simulation and pressing Test Escrow Connection now produces a successful administrator notice:

Simulation mode active.

This confirms that the complete execution path is functioning correctly.

Current Architecture

Escrow Settings

        │

        ▼

Save Configuration

        │

        ▼

WordPress Options

        │

        ▼

Escrow API Client

        │

        ▼

Simulation Environment

        │

        ▼

WordPress Success Notice

Although the implementation currently simulates API responses, every major architectural component required for live communication is now in place.

Lessons Learned

Several valuable engineering principles emerged during this lesson.

  • Build reusable components before integrating external services.
  • Keep configuration separate from business logic.
  • Prefer one well-designed implementation over multiple similar methods.
  • Leverage WordPress APIs instead of building custom administration workflows.
  • Test complete workflows, not just individual functions.

Looking Ahead

With a functioning Escrow configuration system and connection testing workflow now complete, the project is ready to move beyond simulation.

The next lesson will begin replacing simulated responses with actual requests to the Escrow.com REST API using WordPress HTTP functions, allowing the plugin to communicate with external services while preserving the architecture established in this lesson.

https://github.com/SplendidDigital/flipnzee-auctions/releases/tag/lesson-127-stable

Lesson 126 Implementation — Building the Escrow Settings Administration Page

Team Wpnzee on July 25, 2026

In the previous lesson, we created the foundation for communicating with Escrow.com by introducing a dedicated API client. Before that client can establish a connection, however, the plugin needs a secure and flexible way to store configuration details.

In this lesson, we implement a dedicated Escrow Settings administration page. This page allows administrators to configure the plugin without editing source code and prepares the foundation for Sandbox and Production integrations in future lessons.

Why This Lesson Is Important

One of the hallmarks of a well-designed WordPress plugin is that it separates configuration from application logic. Rather than embedding credentials directly in PHP files, configuration should be managed through the WordPress administration interface.

This approach offers several benefits:

  • Better security
  • Easier maintenance
  • Environment flexibility
  • Cleaner codebase
  • Improved user experience

It also makes the plugin suitable for deployment across multiple websites without requiring code modifications.

Objectives

By the end of this lesson, the plugin will:

  • Add an Escrow Settings page to the WordPress admin area.
  • Store configuration using the WordPress Options API.
  • Support multiple operating environments.
  • Allow Sandbox credentials to be managed from the dashboard.
  • Enable or disable debug logging.
  • Protect settings using WordPress nonce verification.

Creating the Administration Class

A new class was introduced to encapsulate all Escrow configuration functionality.

admin/
└── class-admin-escrow-settings.php

Instead of placing settings inside the main administration class, a dedicated class was created to keep responsibilities focused and improve maintainability.

The class is responsible for:

  • Rendering the settings page
  • Loading stored configuration
  • Saving administrator changes
  • Displaying the configuration interface

Loading the Class

The new class was registered during plugin initialization.

The plugin bootstrap now loads the class before it is referenced by the administration menu.

This small but essential step ensures that WordPress can instantiate the settings page without encountering class loading errors.

Registering the Menu

A new submenu was added beneath the existing Flipnzee Auctions menu.

Flipnzee Auctions
    ├── Dashboard
    ├── Auctions
    ├── Payments
    └── Escrow Settings

Keeping the page within the existing administration structure provides a familiar experience for administrators.

Building the User Interface

The page follows standard WordPress administration conventions using a familiar settings table layout.

The current interface includes:

  • Environment selector
  • Sandbox Email
  • Sandbox API Key
  • Debug Logging option
  • Save Settings button

Following WordPress UI conventions ensures the page feels consistent with the rest of the dashboard.

Supporting Multiple Environments

Different deployment stages require different Escrow environments.

The plugin now supports:

EnvironmentPurpose
SimulationInternal testing without contacting Escrow.com
SandboxEscrow.com’s testing environment
ProductionLive transactions

During development, Simulation mode allows the rest of the plugin to be implemented without relying on external API availability.

Saving Configuration

Instead of creating a custom database table, this lesson uses the WordPress Options API.

Configuration is stored under a single option, allowing WordPress to handle serialization and retrieval automatically.

The implementation uses:

  • get_option()
  • update_option()
  • wp_parse_args()

This keeps the code concise while remaining fully compatible with WordPress standards.

Security

Administrative settings should never trust submitted data.

The implementation therefore includes several important security measures.

Nonce Verification

Every settings submission includes a WordPress nonce to protect against Cross-Site Request Forgery (CSRF).

Sanitization

Submitted values are sanitized before storage.

Examples include:

  • sanitize_email()
  • sanitize_text_field()

Escaping Output

Values displayed back to administrators are escaped before rendering to prevent unintended HTML output.

These practices are fundamental to secure WordPress plugin development.

Object-Oriented Structure

The settings page follows the same object-oriented design used throughout the Flipnzee Auctions plugin.

Flipnzee_Admin_Escrow_Settings
│
├── render_page()
├── save_settings()
└── get_settings()

Each method performs a single responsibility, making the class easier to understand, test, and extend.

Debugging During Development

While implementing the feature, a few issues were encountered and resolved.

These included:

  • Missing class loading during plugin initialization.
  • Callback registration errors.
  • Admin page rendering failures.
  • Validation of plugin bootstrap order.
  • Incremental rebuilding of the settings page after isolating the source of a critical error.

Although these issues were temporary, resolving them improved the plugin’s architecture and highlighted the importance of testing each component as it is introduced.

Testing

The completed implementation was tested to verify that:

  • The Escrow Settings page loads successfully.
  • The submenu appears correctly.
  • Settings can be saved.
  • Stored values persist after page refresh.
  • The selected environment is retained.
  • Sandbox credentials are stored correctly.
  • Debug logging preferences are preserved.
  • WordPress nonce protection functions as expected.

Integration with Previous Lessons

The plugin architecture now looks like this:

Flipnzee_Admin_Escrow_Settings
            │
            ▼
 WordPress Options API
            │
            ▼
 Escrow Configuration
            │
            ▼
Flipnzee_Escrow_API_Client

Future API requests will retrieve configuration directly from these stored settings instead of relying on hard-coded values.

Files Added and Updated

admin/
└── class-admin-escrow-settings.php

admin/
└── class-admin.php

flipnzee-auctions.php

These changes establish the administrative infrastructure required for future Escrow integration.

What We Learned

This lesson demonstrated several important WordPress development concepts:

  • Creating dedicated administration classes.
  • Registering custom admin menus.
  • Using the WordPress Options API.
  • Designing secure administration forms.
  • Implementing nonce verification.
  • Sanitizing and escaping user input.
  • Structuring plugin code using object-oriented principles.

These techniques are applicable to many types of WordPress plugins beyond auction systems.

Conclusion

The Flipnzee Auctions plugin now includes a dedicated administration page for configuring its Escrow integration. By separating configuration from application logic and leveraging the WordPress Options API, the plugin becomes easier to deploy, maintain, and extend.

This implementation provides a solid foundation for the next phase of development, where the stored configuration will be used to establish communication with the Escrow.com API.

https://github.com/SplendidDigital/flipnzee-auctions/releases/tag/lesson-126-stable

Next Lesson

In Lesson 127, we will integrate the Escrow API Client with the stored settings and implement a Test Escrow Connection feature. This will allow administrators to verify connectivity to the selected Simulation, Sandbox, or Production environment before initiating real escrow transactions.

Lesson 125: Building an Escrow API Client Architecture for Future Live Integration

Team Wpnzee on July 24, 2026

One of the biggest goals of Flipnzee Auctions has always been to support a professional transaction workflow for buying and selling websites. While previous lessons introduced the External Provider Manager and simulated Escrow transactions, the plugin was still tightly coupled to a single provider implementation.

In this lesson, the architecture takes an important step forward by introducing a dedicated Escrow API Client. Although it currently operates in simulation mode, it establishes the same separation of responsibilities used by production software and prepares the plugin for future communication with the live Escrow.com REST API.

Why Introduce an API Client?

Earlier lessons allowed the Escrow Provider to simulate transaction creation directly. While functional, that approach meant the provider class was responsible for both business logic and external communication.

As the project grows, this becomes increasingly difficult to maintain.

By introducing an API client, responsibilities become much clearer:

  • Escrow Provider
    • Handles auction payment workflow.
    • Decides when an escrow transaction should be created.
    • Stores provider information in the database.
  • Escrow API Client
    • Handles all communication with Escrow.com.
    • Manages API endpoints.
    • Prepares authentication.
    • Builds request payloads.
    • Parses API responses.

This separation makes each component easier to understand, test and replace.

Studying the Escrow.com API

Before writing any code, the official Escrow.com developer documentation was reviewed to understand how their software works.

The research focused on:

  • Sandbox environment
  • Live API endpoint
  • REST request structure
  • Authentication model
  • Transaction lifecycle
  • Status values
  • Buyer and seller roles

Rather than attempting to integrate every feature immediately, the goal of Lesson 125 is to establish the architecture that future lessons will expand.

Creating the Escrow API Client

A new class was introduced:

includes/class-escrow-api-client.php

This class becomes the single location responsible for interacting with Escrow.com.

Instead of allowing multiple classes to communicate directly with the API, every request will eventually pass through this client.

The class currently contains:

  • Sandbox endpoint
  • Live endpoint
  • API version
  • Simulation mode
  • Transaction creation method

Although responses are simulated today, replacing them with real HTTP requests later will require minimal changes elsewhere in the plugin.

Simulation Mode

During development it is undesirable to create real escrow transactions.

Instead, the client currently returns realistic responses such as:

  • success
  • provider reference
  • status
  • timestamps

This allows every surrounding component to behave exactly as it would during a live transaction without contacting the Escrow.com servers.

Refactoring the Escrow Provider

The existing provider no longer creates references itself.

Instead it now delegates that responsibility:

Escrow Provider
        ↓
Escrow API Client
        ↓
Response
        ↓
External Provider Manager

The provider now simply:

  1. Creates the API client.
  2. Requests a transaction.
  3. Receives the response.
  4. Stores provider details.
  5. Returns the reference.

This greatly reduces complexity inside the provider.

Provider Persistence

After receiving the simulated response, the provider stores:

  • Transaction ID
  • Provider name
  • Escrow reference
  • Provider status
  • Notes
  • Created date
  • Updated date

using the existing External Provider Manager introduced in previous lessons.

This ensures the transaction history remains identical whether responses originate from simulation mode or the live API in future versions.

Logging Improvements

Additional logging was added throughout the workflow.

Typical log output now resembles:

FLIPNZEE ESCROW: Starting escrow transaction...
FLIPNZEE API CLIENT: Simulation mode enabled.
FLIPNZEE API CLIENT: Returning simulated response.
FLIPNZEE EXTERNAL PROVIDER INSERT SUCCEEDED
FLIPNZEE ESCROW: Provider record created.
FLIPNZEE ESCROW: Escrow reference created.

These logs provide a complete picture of the transaction lifecycle and make debugging considerably easier.

Benefits of This Architecture

Introducing the API client provides several advantages:

  • Cleaner separation of responsibilities.
  • Easier testing.
  • Simpler debugging.
  • Reduced coupling.
  • Future API integration requires minimal changes.
  • Other payment providers can adopt the same pattern.

Most importantly, the remainder of the plugin no longer needs to know whether responses come from simulation mode or from the real Escrow.com servers.

Looking Ahead

With the architecture now in place, the plugin is ready to move beyond simulation.

Future lessons will focus on:

  • API authentication
  • Secure credential storage
  • Real HTTP requests using the WordPress HTTP API
  • Creating live Escrow.com transactions
  • Synchronizing provider status
  • Automatic transaction updates
  • Webhook support where available
  • Improved administrative monitoring

By establishing the API client first, these enhancements can be introduced incrementally without rewriting the payment workflow.

Conclusion

Lesson 125 represents an important architectural milestone for Flipnzee Auctions. Rather than jumping directly into live API integration, the plugin now adopts a layered design that separates business logic from external communication. This makes the codebase easier to maintain, easier to test, and well positioned for future integration with the Escrow.com REST API while preserving the existing transaction workflow.

https://github.com/SplendidDigital/flipnzee-auctions/releases/tag/lesson-125-stable

Lesson 124: Improving the Transaction Details Interface with a Transaction Summary

Team Wpnzee on July 24, 2026

As the Flipnzee Auctions plugin continues to mature, the administrative interface has become just as important as the underlying business logic. Administrators need to review payment information, monitor external providers, and coordinate ownership transfers efficiently. Presenting this information in a clear and organized manner is therefore essential.

In this lesson, the focus shifted away from backend functionality and towards improving the usability of the Transaction Details page. Rather than introducing new transaction processing logic, the goal was to make existing information easier to understand and manage.

Why This Change Was Needed

By previous lessons, the Transaction Details page had already become the operational center for completed auctions. It included:

  • Payment Management
  • External Provider information
  • Ownership Transfer progress

Although all the required information was available, administrators had to scroll through multiple sections before gaining an overall understanding of a transaction.

This lesson introduces a dedicated Transaction Summary section that presents the most important information immediately upon opening the page.

Objectives

The objectives for Lesson 124 were to:

  • Improve the administrator experience.
  • Introduce a high-level transaction overview.
  • Reduce unnecessary scrolling.
  • Organize information more logically.
  • Prepare the interface for future enhancements.

Adding a Transaction Summary

The most visible enhancement in this lesson is the addition of a Transaction Summary card positioned at the top of the page.

The summary consolidates commonly referenced information into a single table, including:

  • Transaction ID
  • Auction ID
  • Listing ID
  • Seller
  • Buyer
  • Winning Bid
  • Payment Status
  • Payment Gateway
  • Creation Date
  • Last Updated

Instead of navigating between multiple sections, administrators can now understand the overall transaction at a glance.

Improving Page Hierarchy

The page now follows a more logical workflow:

Transaction Summary

↓

Payment Management

↓

External Provider

↓

Ownership Transfer

This ordering reflects the natural lifecycle of an auction transaction, making the interface easier to navigate.

Preserving Existing Business Logic

An important design decision during this lesson was to improve the presentation layer without modifying the underlying transaction workflow.

No changes were made to:

  • Payment processing
  • External Provider Manager
  • Escrow Provider integration
  • Ownership Transfer logic
  • Database schema
  • Transaction processing

Only the user interface was enhanced.

This separation between presentation and business logic reduces implementation risk while making the codebase easier to maintain.

Better Administrative Experience

With the addition of the summary section, administrators no longer need to search through multiple forms to locate basic transaction details.

Typical workflow:

Open Transaction

↓

Review Summary

↓

Update Payment Status

↓

Review Provider Information

↓

Continue Ownership Transfer

The page now better supports the day-to-day management of completed auctions.

Preparing for Future Features

The new Transaction Summary also provides a natural location for additional information that will be introduced in later lessons, including:

  • Provider synchronization status
  • Transaction activity timeline
  • Escrow synchronization timestamp
  • Buyer and seller notifications
  • Digital asset transfer progress
  • Transaction reports

By introducing the summary first, these future enhancements can be integrated without redesigning the page structure again.

Lessons Learned

This lesson demonstrates that improving software is not always about adding new functionality.

A well-organized interface can significantly improve administrator productivity without requiring changes to the underlying business logic.

Separating presentation from application logic also makes future development safer and easier, allowing interface improvements to be implemented independently of transaction processing.

Conclusion

Lesson 124 focused on enhancing the usability of the Transaction Details page by introducing a Transaction Summary and improving the overall page organization. While the plugin’s core transaction workflow remained unchanged, administrators now have a clearer, more structured overview of each completed auction.

With a stronger administrative foundation now in place, the Flipnzee Auctions plugin is well positioned for the next phase of development, where attention will return to functional enhancements such as transaction activity tracking, provider synchronization, and deeper Escrow integration.

https://github.com/SplendidDigital/flipnzee-auctions/releases/tag/lesson-124-stable
